Unraveling the Magic of Analog to Digital Audio Conversion: A Comprehensive Guide
In the fascinating world of audio engineering, a pivotal yet enigmatic process is the conversion of analog audio to digital. This mechanism, seemingly simple yet immensely intricate, has powered our transition into the digital age. This article aims to unravel this mystery, providing a technically detailed yet accessible explanation of the process of audio conversion.
The Analogy of Analog
Analog audio is continuous. It captures and represents sound waves as they are, akin to the way a painter might capture a landscape’s breathtaking view on canvas. For example, think about playing a vinyl record. The needle traces the grooves in the record, each groove corresponding to a specific sound wave, which the player then recreates and amplifies.
Stepping into the Digital Realm

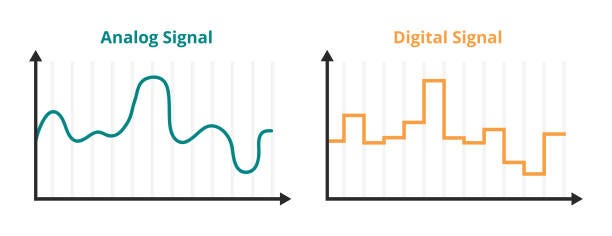

In contrast to the flowing river of analog audio, digital audio is discrete. It breaks down the continuous sound wave into a series of individual samples, which can be stored as binary data (a series of 1s and 0s). This process, known as Analog-to-Digital Conversion (ADC), is an integral part of how we consume music today.
Analog to Digital Conversion: An Inside Look

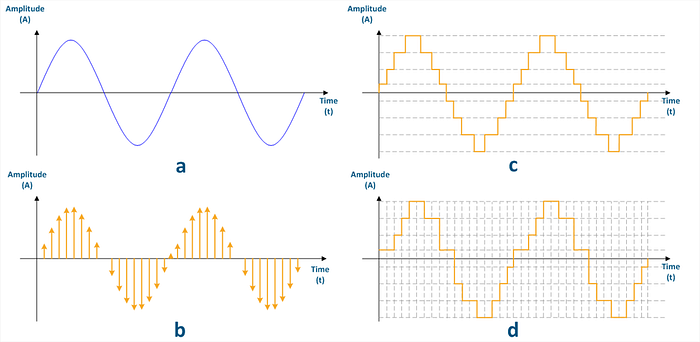

The ADC process primarily involves two stages: Sampling and Quantization.
Sampling

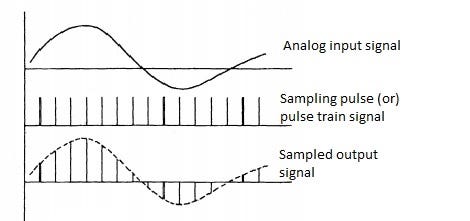

Imagine you’re creating a flipbook. You draw successive images with minor changes to depict motion. This is what happens during sampling — it’s like capturing snapshots of the audio signal at regular intervals. The rate at which these ‘snapshots’ are taken is referred to as the “sampling rate.”
Measured in Hertz (Hz), the sampling rate implies the number of samples taken per second. For instance, a CD standard sampling rate for music is 44.1 kHz (44,100 samples per second). This frequency is chosen based on the Nyquist-Shannon theorem, which posits that to accurately represent a signal, the sampling rate must be at least twice the maximum frequency one wishes to record.
This means that with a 44.1 kHz sampling rate, we can accurately capture audio frequencies up to 20 kHz, the upper limit of human hearing.
Quantization
Quantization, the second part of the ADC process, is the assignment of specific numerical values to each sample. If sampling is about how often we capture the image for our flipbook, quantization is about how much detail each image holds.
In simpler terms, consider the process of painting a picture using only a certain number of colors. The more color options you have (the higher the bit-depth), the richer and more nuanced the resulting image will be. Similarly, in audio, the higher the bit-depth (e.g., 16-bit, 24-bit), the greater the dynamic range and the lower the quantization noise (unwanted noise introduced during the quantization process).
Streaming Platforms and the Art of Audio Conversion
Today’s popular streaming platforms like Spotify, Apple Music, and Tidal owe their existence to the ADC process. These platforms store and transmit audio files in digital formats. When a user plays a song,
the platform sends a compressed digital audio file to the user’s device. This file is then re-converted into an analog signal by a Digital-to-Analog Converter (DAC) inside the device, enabling the headphones or speakers to generate sound waves that we can hear.
This means that every song you stream undergoes a journey from being an analog signal (when it was initially recorded) to a digital one (when it was processed and sent to you) and back to an analog signal (when your device converted it to produce sound).
The Practical Implications: Understanding Bitrates and Formats
The sampling rate and bit-depth determine the audio file’s bitrate. The bitrate is the amount of data processed per unit of time, directly correlating with audio quality. Higher bitrate means more data and, consequently, better audio quality.
Formats like MP3 and AAC are ‘lossy’ formats that use compression techniques to reduce the bitrate, making the files smaller but losing some audio quality. On the other hand, ‘lossless’ formats like FLAC and ALAC maintain the full quality of the audio but result in larger file sizes.
The Art in the Science
Just like all aspects of audio engineering, ADC is as much an art as it is a science. Every choice made in the conversion process can subtly influence the character of the resulting sound. The quality of the conversion process, both ADC and DAC, can significantly affect the quality of the audio you hear on your favorite media.
In conclusion, the conversion from analog to digital audio is a technical marvel that facilitates the delivery of music to our ears in this digital age. It’s the unseen artist behind every piece of music we stream online or every podcast we listen to. And though often taken for granted, without this process, our world would certainly sound a whole lot different.
By understanding the fundamentals of this process, we gain not only a greater appreciation of the technology we use every day but also provide a foundation for aspiring audio engineers to innovate and improve these techniques. After all, who knows what the future of audio might sound like? We may be on the cusp of witnessing the birth of new, groundbreaking audio technologies, thanks to the continuous evolution of analog to digital audio conversion.
